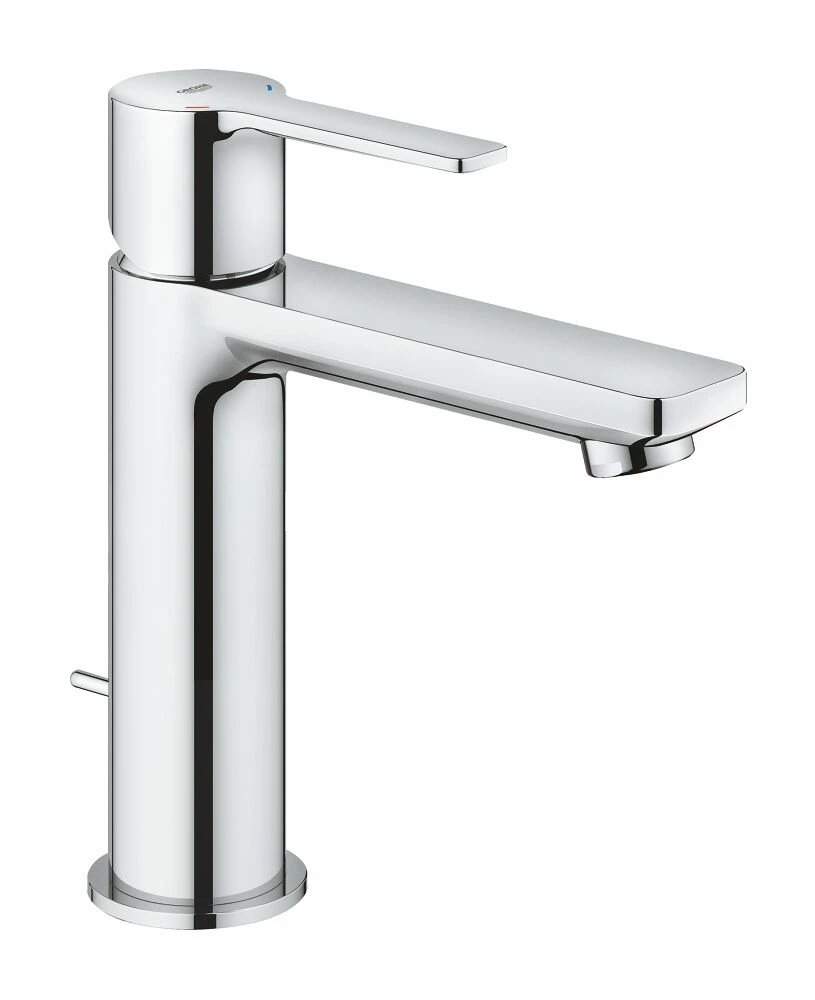

Grohe 2379400A Lineare Single-Handle Bathroom Faucet S-Size In Starlight Chrome

Grohe 2379400A Lineare Single-Handle Bathroom Faucet S-Size in Starlight Chrome

Overview

• Single hole instllation
• Metal lever handle
• GROHE SilkMove 1.1″ (28mm) ceramic cartridge
• With temperature limiter
• GROHE StarLight chrome finish
• Includes waste-set drain assembly
• GROHE AquaGuide adjustable flow control
• Stainless steel flex lines
• GROHE QuickFix installation system

Application

Operation is possible in conjunction with:

• Pressurized storage heaters
• Thermally controlled instantaneous heaters
• Hydraulically controlled instantaneous heaters

Operation with low-pressure storage heaters (displacement water heaters) is not possible.

Specifications

• Max flow: 1.2GPM (4.5L/min)
• Flow Pressure
  • min: 7.25psi
  • recommended: 14.5 – 72.5psi
  • greater than 72.5 psi, fit pressure reducing valve
• Max. Operating pressure: 145psi
• Test pressure: 232 psi
• Temperature

  max. (hot water inlet): 158 F

  Thermal disinfection possible
• Water Connection

  cold-RH

  hot-LH
• Non-reversible cartridge

Notes

• Major pressure differences between cold and hot water supply should be avoided.
• To be installed according to local codes and regulations
