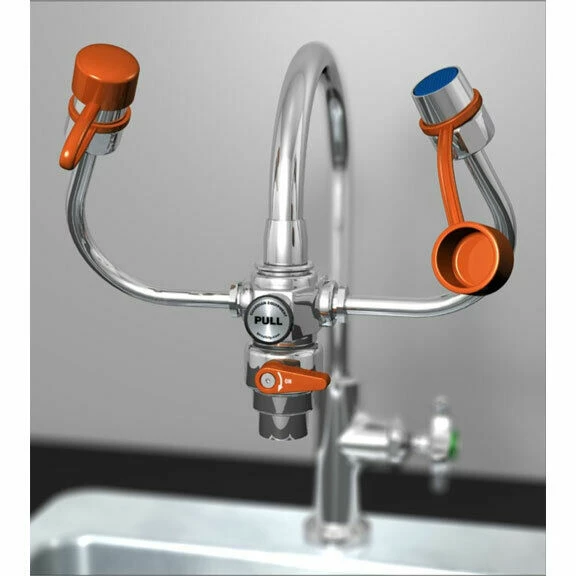

Guardian G1201 Brass Eye Safe Faucet-Mounted Eyewash With Faucet Control Valve In Chrome

The Guardian Equipment G1201 eyewash installs easily on existing laboratory faucets without interfering with the normal faucet operation. Water is aerated and sprayed through adjustable outlet heads that angle forward for easy access. This unit fits gooseneck style faucets with spray heads 5″ apart; the G1200 for standard faucets is also available. The related G1101 model is similar except that lacks the convenience of single valve faucet activation.

FEATURES

• Application: EyeSafe faucet-mounted eyewashes convert any faucet into an emergency eyewash station without interfering with normal faucet operation. An EyeSafe unit may be installed at any sink, close to where accidents might occur. In an emergency, the unit is quickly located and activated, and provides an unlimited supply of potable water for rinsing the user’s eyes.

Operation: Unlike conventional faucet-mounted eyewashes, the G1200 offers the ability to activate the eyewash in a single motion. The unit is equipped with a diverter valve for the eyewash and a separate control valve for the faucet. Once the unit is installed on a faucet, the faucet may be opened and left “on” to a preset temperature. To use the faucet, the flow of water is controlled by a quarter-turn ball valve and knob at the bottom of the eyewash. To use the eyewash, simply pull the knob on the front of the eyewash. Since the faucet is open, this is the only step required to activate the eyewash. Water pressure holds the eyewash in operation, leaving the user’s hands free, To return to normal faucet operation, push the knob in or turn off the faucet

• Outlet Heads: Outlet heads are mounted 5″ apart and deliver a soft, aerated flow of water. Heads angle forward and inward toward user. Angle of heads is adjustable to permit full coverage and avoid splashing. Furnished with float-off dust covers to protect outlet heads.
• Eyewash Valve: Forged brass diverter valve. faucet control valve: Quarter turn ball valve with chrome plated brass ball, molded TFE seals and plastic handle.
• Inlet: Body has 55/64″-27 female thread. Furnished with three adaptors (15/16″-27, 13/16″-27 and 3/8″ IPS) for installing on most commonly used faucets, including laboratory-type faucets.
• Outlet: Furnished with removable aerator on bottom.
• Quality Assurance: Each unit is completely assembled and water tested prior to shipment.
